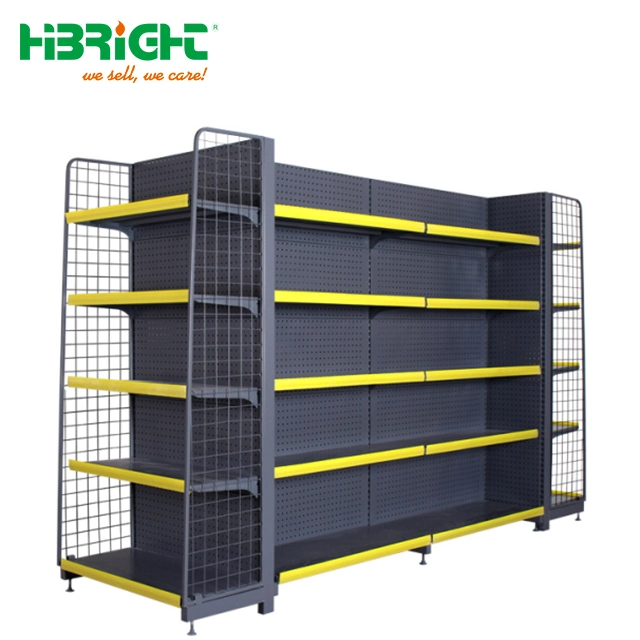

Retail shelving bays offer a modular and flexible solution to displaying products.Sometimes the term "gondola shelving" is used as a generic term for any type of supermarket shelving but,normally it refers to double sided, shop shelving designed for use in the central aisles of the store.
Gondola shelving is the most significant piece of shop equipment, not because most products are displayed on the gondola shelves, but because it is used to create the overall store layout by forming the shelving aisles. Shelving aisles should be positioned strategically to direct customer flow. Routing customer flow around the store is an essential method to ensure exposure to all the products on display.
Four mian styles: When you need to purchase gondola shelving, the first thing you need to decide is the shelf style. There are four major styles gondola shelving. European style , American style, Asian style and Australian style. Except they look different, there is no other functional different among them. So you totally can choose the style base on your taste. But choose the most common style in your area did help you save time when you need to buy some small accessories.

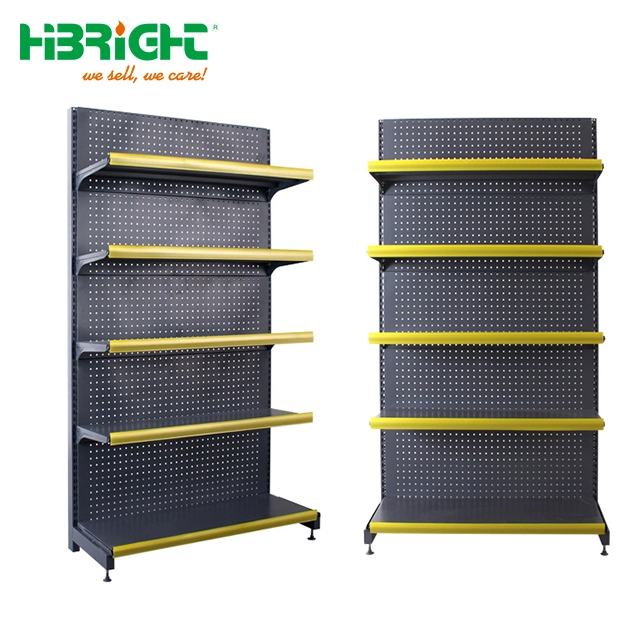

Euro style:
American style:
Australian style:
Asia style:
Optional parts:


Factory show:

About Highbright:
Highbright Enterprise Limited was founded in year 2004 and locate in JiangSu, China. Mainly design and manufacture retail equipments.
Products include various shopping trolleys, shopping baskets, warehouse trolleys, foldable shopping carts, checkout counters, store fixtures, shop fittings, display shelves etc.
With production capacity of ten containers per week, we have cooperated with big chain supermarkets and retailers in Europe, North Amercia, South America, Australia etc. When dealing in these various products fields, HIGHBRIGHT not only offer existing styles, but also customize special unique design with our professional technique team.
With us as your partner, you'll be well prepared to cope with any future changes. That's because we've never react to trends, but instead we've actively helped to mould them with our numerous developments.
Contact us:
You Choose How to Order Shopping Cart Trolley Coin Lock for Supermarket
Either Telephone our company on:
+0086-512-58911908, 58911907, 58911906
+0086-17701565305 (24 hours available)
Fax your inquiry or order on:
+0086-512-58911909
Or post to us at the address shown below: Shopping Cart Trolley Coin Lock for Supermarket
No.19-2, Zhongxing Road, Economic Development Zone, Zhangjiagang, Jiangsu,China 215600
Our Website : highbright.en.made-in-china.com
So feel free to send us your inquiry, We will do our best to serive you!

Euro style:
Basic shelving components | Size | options(mm) |
Upright | Section size/ | 30x30/ 30x60/ 30x80/ 30x110 |
Lenght/ | 1410/1510/1610/1710/1810/1910/2010/2110/2210/2310/2410/ | |
2510/2610/2710/2810/2910/3010 | ||
Thickness/ | 2.0/ 2.5 | |
Base leg | Length | 200/250/300/370/470/570/670/770 |
Height | 60/110/160/260 | |
Shelf | Width | 665/800/1000/1250/1330 |
Depth | 200/250/300/370/470/570/670/770 | |
Thickness | 0.7/0.8 | |
Wire shelf | Width | 665/1000/1250/1330 |
Depth | 370/470/570 | |
Dia | 2.8 | |
Preforated backpanel | Width | 665/800/1000/1250/1330 |
Height | 400/500 | |
Thickness | 1.0/1.2 | |
Back panel | Width | 665/800/1000/1250/1330 |
Height | 100/200/300/400/500 | |
Thickness | 0.6/0.7 | |
Bracket | Hook number | 2/3/4 |
Length | 200/250/300/ 370/470/570/670/770 | |
Thickness | 2.5/3 |
Basic shelving components | Size | options |
Upright | height | 30'' thru 120'' in 6'' (152 mm) incremnets |
Kicker plate | Length | 2' to 4' in 6'' increments |
Top/bottom spanner | Width | 3' or 4' |
Hardboard Backs | height | 6", 12", 18", 24", 30", 36", 42", 48", 54", 60", 66", 72" |
(Pegboard and Marteck) | Length | 2' to 4' in 6'' increments |
Shelf | Width | 2' to 4' in 6'' increments |
Depth | 7''-31'' | |
Angular adjustment | flat, 17° or 30° downslope positions | |
Base Shelf | Width | 2' to 4' in 6'' increments |
Depth | 7''-31'' | |
Wire shelf | Width | 2' to 4' in 6'' increments |
Depth | 7''-31'' | |
Angular adjustment | flat, 17° or 30° downslope positions |
Australian style:
Basic shelving components | Size | options(mm) |
Upright(single side) | Depth | 200/250/300/320/350/400/450/500 |
Height/ | 1200/1500/1800/2100/2400 | |
Thickness/ | 1.5/ 2.0 | |
Shelf | Width | 600/630/900/930/1200/1230 |
Depth | 200/250/300/320/350/400/450/500 | |
Thickness | 0.5/0.6/0.7/0.8/0.9/1.0 | |
Wire shelf | Width | 600/630/900/930/1200/1230 |
Depth | 335/405 | |
Dia | 2.7 | |
Preforated backpanel | Width | 600/630/900/930/1200/1230 |
Height | 100/300 | |
Thickness | 0.7/0.8/0.9/1.0/1.2 | |
Back panel | Width | 600/630/900/930/1200/1230 |
Height | 100/300 | |
Thickness | 0.6/0.7/0.8/0.9 | |
Volcano back panel | Width | 600/630/900/930/1200/1230 |
Height | 100/300 | |
Thickness | 0.8/0.9/1.0 | |
Mesh back | Height | 1200/1500/1800/2100/2400 |
Width | 600/630/900/930/1200/1230 | |
Bracket | Hook number | 2/3/ |
Length | 250/300/ 320/350/400/450/500 | |
Thickness | 2.0/2.5/3 | |
Rear/ front beam | Length | 600/630/900/930/1200/1230 |
Wire fence | Length | 600/630/900/930/1200/1230 |
Asia style:
Basic shelving components | Size | options |
Upright | Section | 30*60*2.0mm; 30*80*2.2mm; |
height | 1350;1550;1850;2150;2550mm | |
Kicker plate | Length | 500; 650;700;800;900;1000;1100;1200;1300mm |
Flat back panel | height | 300mm; 150mm |
Length | 500; 650;700;800;900;1000;1100;1200;1300mm | |
Pegboard panel | height | 300mm; 150mm |
Length | 500; 650;700;800;900;1000;1100;1200;1300mm | |
Thickness | 0.5; 1.2mm | |
Shelf | Width | 500; 650;700;800;900;1000;1100;1200;1300mm |
Depth | 200; 300;350;400;450;500;550;600mm | |
Angular adjustment | flat, 17° or 30° downslope positions | |
Base Shelf | Width | 2' to 4' in 6'' increments |
Depth | 7''-31'' | |
Bracket | Length | 200; 300;350;400;450;500;550;600mm |
Thickness | 2.5; 3mm |
